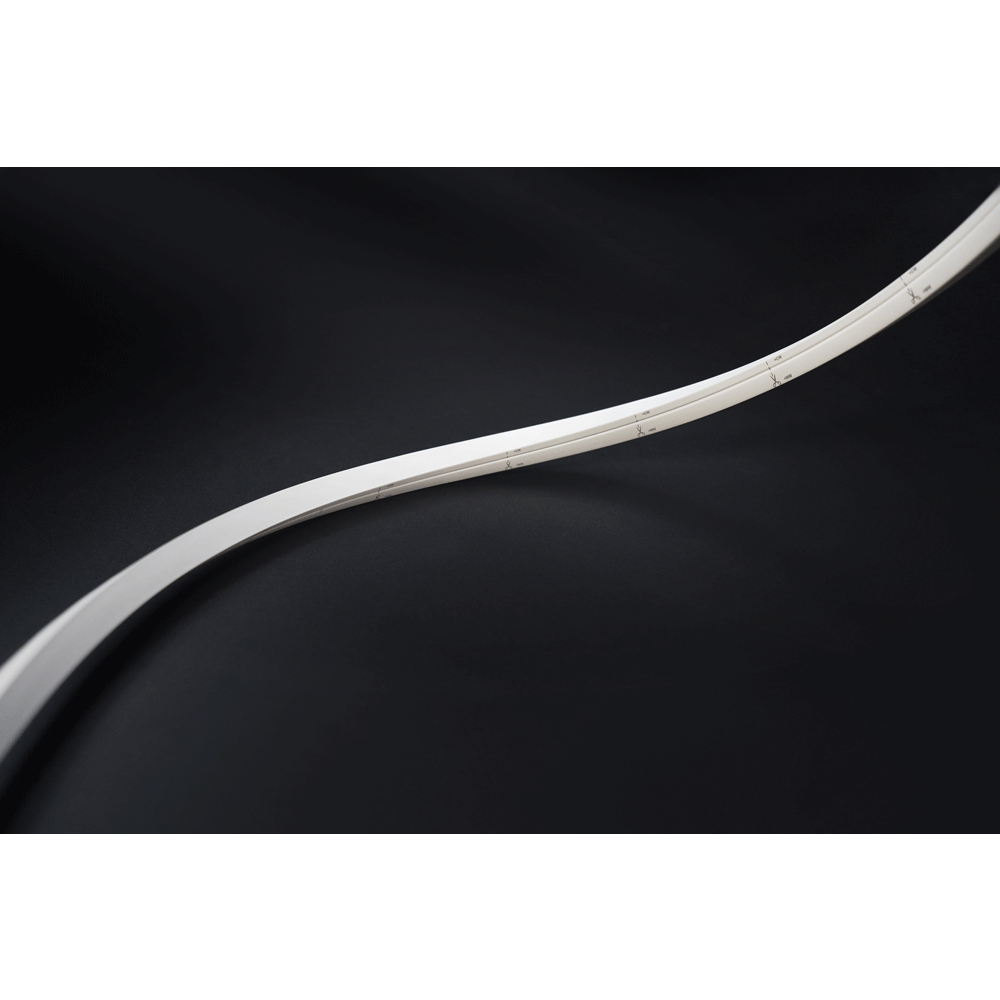

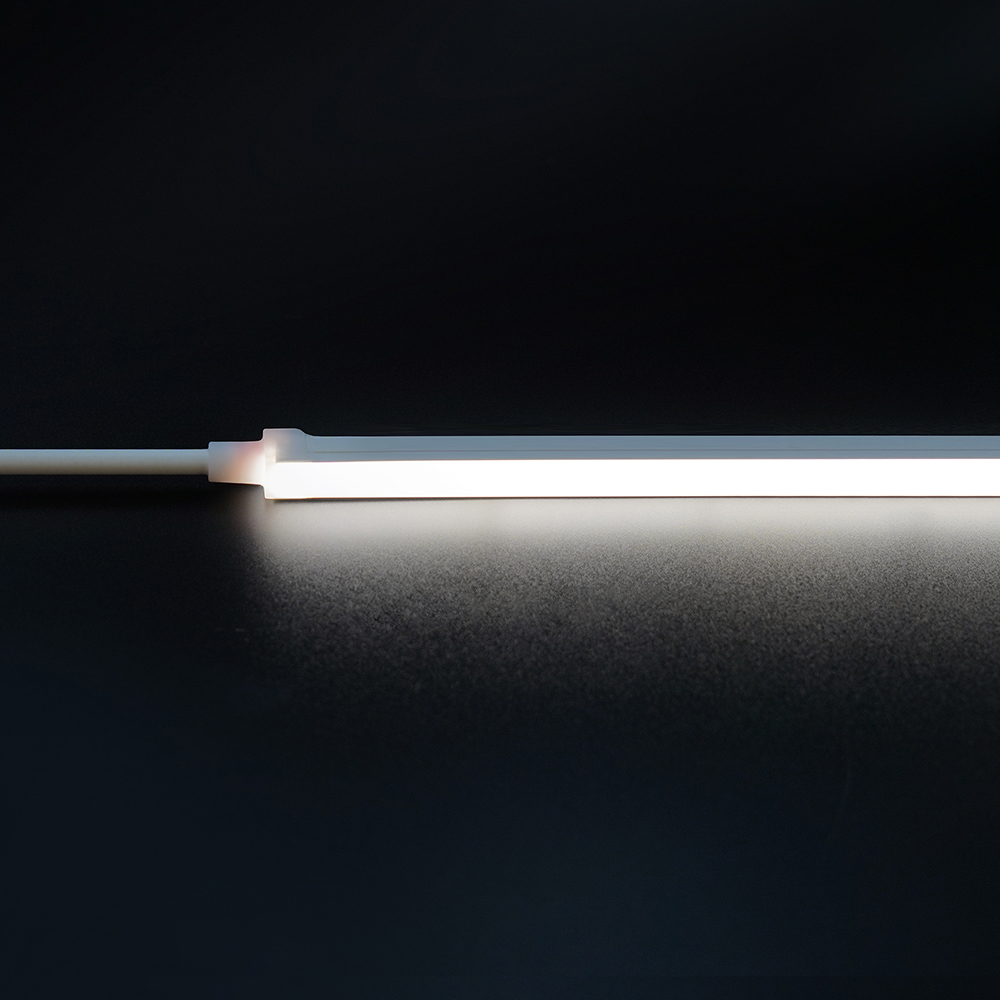

Surface Mount 3D Bendable LED Neonflex 24V 2.4W/ft 10mm IP67
Spec Sheet
Product Features
- 3D bendable surface mount neonflex waterproof
- Seamless linear light – no diffused cover needed
- No aluminum channel needed
- No hotspots and with CRI 90+ for vibrant colors
- Reinforced design for stable performance when bending & twisting
- 4 oz copper PCB and real gold wires for superb light maintenance
- Available in 4ft, 8ft and 16ft lengths with wires on both ends
- 2.4W/ft, in stock 2700K, 3000K, 4000K & 5000K
- Warranty: 5 Year Indoor / 3 Year Outdoor
- cULus certified
Technical Specifications
SPECIFICATIONS:
- Input Voltage: 24V DC
- Power: 2.4 W/ft
- Operating Temperature: -4°F (-20°C) to +220°F (+105°C)
- Maximum Connecting Length 16 ft / 5 meters
- Beam Angle: 120°
- Light color options Warm White 2700K, Soft White 3000K, Neutral White 4000K and Daylight White 5000K
- CRI 90 + for True Colour Rendering
- LED Operation Type: Constant Voltage
- Certification: cULus
- Warranty: 5 Year Indoor / 3 Year Outdoor
APPLICATIONS:
- Undercabinet & Cove Lighting
DIMENSIONS:
- Available in 4ft, 8ft and 16ft lengths with Wires on both ends
- Minimum Bending Diameter: 4 3/4″ (120mm) Horizontal | 6″ (150 mm) Vertical
- Cuttable Increment: 4″ (100 mm)
Suitable for Wet Locations
Downloads
Spec Sheet
