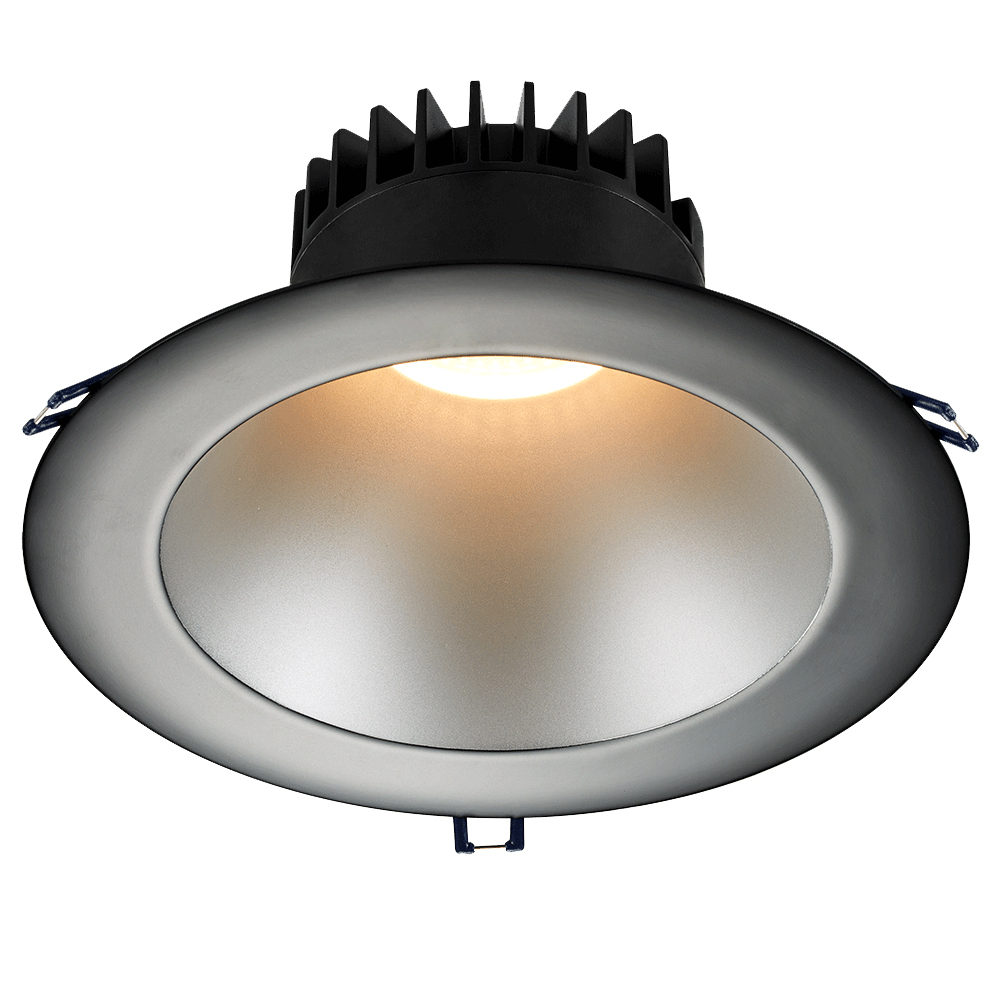

8″ Round Deep Regressed 18W / 30W

MODEL: 18W LD8R | 30W LD8R-HO Category: Regressed

Spec & Sell Sheets

Spec Sheet 18W: LD8R
Spec Sheet 30W: LD8R-HO
Sell Sheet: Sell Sheet LD8R

Product Features

Models: 18W LD8R, 30W LD8R-HO
8″ Round Deep Regressed LED – Elegant Design Without Glare
Type IC, Air-Tight & WET – No Housing Required
4 1/2″ Deep – Install Where Ceiling Space Is Limited
Triac Dimmable with most CL dimmers 120V input
0-10V Dimmable Option 120V – 347V input
18W model CCT options & lumen output: 2700K (1500 lm), 3000K (1550 lm), 3500K (1600 lm), 4000K (1650 lm), 5000K (1700 lm) & Dim To Warm 3000K to 2000K (1150 lm), 5CCT
30W model CCT options & lumen output: 2700K (2630 lm), 3000K (2700 lm), 3500K (2810 lm), 4000K (2900 lm), 5000K (3000 lm)
CRI 90+ for True Colour Rendering
Armoured Cable & Metal Connectors – Open Plenum Rated
Driver Inside Connection Box with Romex Quick Connectors
Warranty: 10 Year Residential, 5 Year Commercial Installations

Where to Buy

LD8R 360° View

Click & drag your cursor over the image to spin the image 360°.

Video Overview

Discover Deep Regressed LED Lights

Technical Specifications

CONSTRUCTION:

8″ Round Deep Regressed LED – Elegant Design Without Glare. Driver Inside Connection Box with Romex Quick Connectors.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 4″

Default Driver Input Voltage: 120V AC TRIAC Dimmable
Optional Driver Input Voltage: 120V-347V AC 0-10V Dimmable
Energy Used: 18W or 30W
Power factor: 0.98
Beam Angle: 38°
18W model CCT options & lumen output: 2700K (1500 lm), 3000K (1550 lm), 3500K (1600 lm), 4000K (1650 lm), 5000K (1700 lm) & Dim To Warm 3000K to 2000K (1150 lm), 5CCT
30W model CCT options & lumen output: 2700K (2630 lm), 3000K (2700 lm), 3500K (2810 lm), 4000K (2900 lm), 5000K (3000 lm)
CRI: 90+
Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
Compliance: cULus, Energy Star (except DTW & 5CCT), T24

DIMENSIONS:
