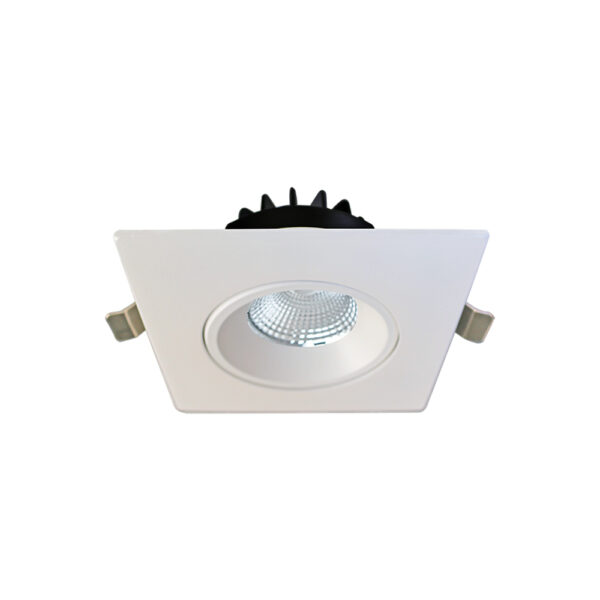

4″ Square Venus Adjustable

Discover Venus LED Lights

CONSTRUCTION:
4″ Square Venus Adjustable Recessed LED 12W

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 2 1/2″

• Default Driver Input & Dimming: 120V AC 50/60 Hz – Triac Dimmable
• Optional Driver Input & Dimming: 120V-347V AC 50/60 Hz – 0-10V Dimmable
• Energy Used: 12W
• Halogen equivalent: 90W
• Beam Angle: 38°
• Adjustable 20° each direction and with 360° rotation
• 2 Light color options: 5CCT selectable, Dim to Warm 3000K-1800K
• Light output: 5CCT 780-910 lm, DTW 700 lm
• CRI: 90+
• Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Rated: cETLus, Energy Star

DIMENSIONS:

• ID 4″; OD 5″; Depth 2 1/4″
• Cut Out 4 1/4″ to 4 1/2″

Mounting Plate Flat 13″

• model #MP4-2

Mounting Plate Flat 26″

• model # RIP4

Jumper Cable *

• 10 ft
• model # JC10

*maximum extension 40 feet

Specification Sheets:

• AD-LED-4-S12W-xx-LREY-SQ

Installation Instructions:

• model: Installation Instructions 4″ Venus

Photometric PDF files:

5CCT:

AD-LED-4-S12W-5CCT-LREY-SQ-2700K
AD-LED-4-S12W-5CCT-LREY-SQ-3000K
AD-LED-4-S12W-5CCT-LREY-SQ-3500K
AD-LED-4-S12W-5CCT-LREY-SQ-4000K
AD-LED-4-S12W-5CCT-LREY-SQ-5000K

Dim to Warm 3000K to 1800K:

AD-LED-4-S12W-DTW-LREY-SQ-3000K

Photometric IES files:

5CCT:

AD-LED-4-S12W-5CCT-LREY-SQ-2700K
AD-LED-4-S12W-5CCT-LREY-SQ-3000K
AD-LED-4-S12W-5CCT-LREY-SQ-3500K
AD-LED-4-S12W-5CCT-LREY-SQ-4000K
AD-LED-4-S12W-5CCT-LREY-SQ-5000K

Dim to Warm 3000K to 1800K:

AD-LED-4-S12W-DTW-LREY-SQ-3000K
