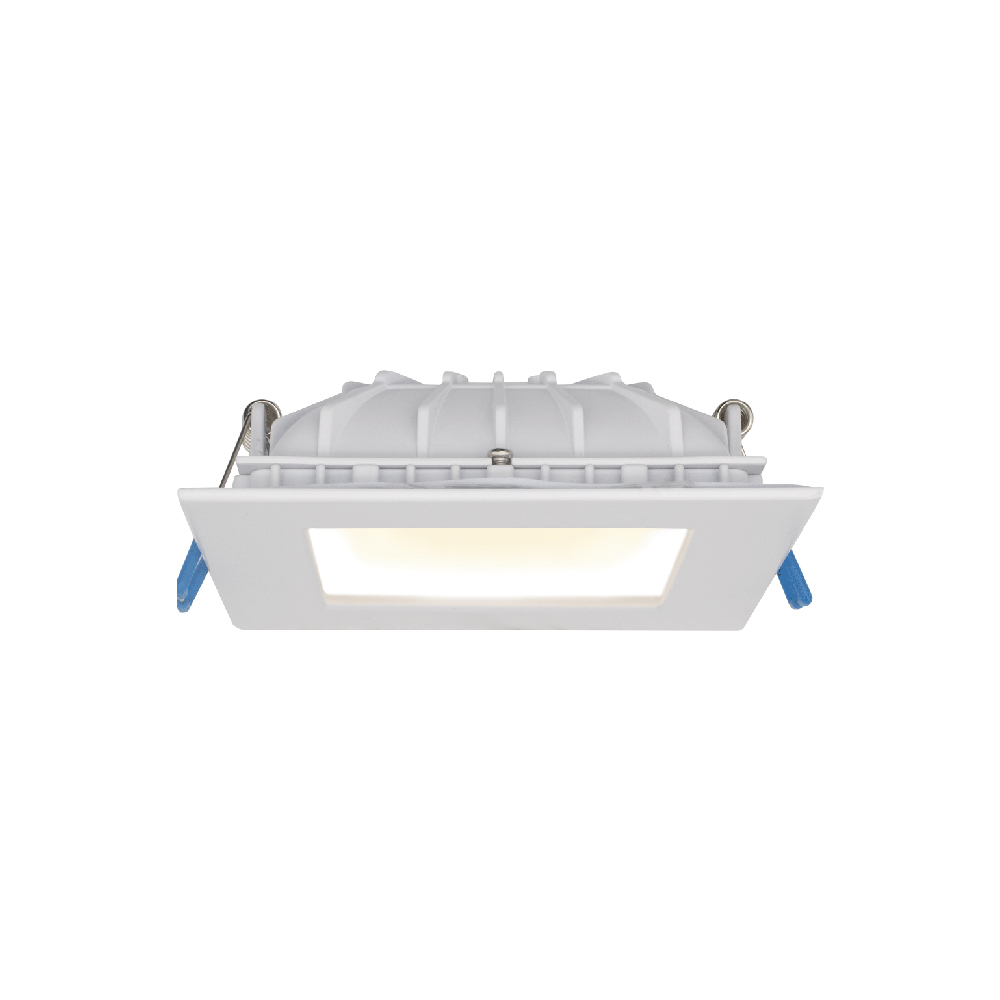

4″ Square Indirect Slim Recessed LED 12W

CONSTRUCTION:
4″ Square Indirect Slim Recessed LED With Integral Driver In Connection Box.
One driver for every fixture required.

MOUNTING:
Cut Square Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required for driver to fit: 2 1/2″

• Power: 12W
• Halogen equivalent: 75W
• Beam Angle: 130°
• 1 5/8″ Thick – Fits in tight ceiling spaces
• Indirect Light for reduced glare
• 5CCT user selectable 2700K | 3000K | 3500K | 4000K | 5000K
• Light output: 660 | 690 | 730 | 730 | 700 lm
• CRI: 90 +
• Driver Input Voltage: 120V AC
• Dimmability – TRIAC Dimmable 10% – 100%
• Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Warranty: 3 Years
• Compliance: cETLus

DIMENSIONS:

• ID 4 1/8″; OD 4 3/4″; Depth 1 5/8″
• Cut out: 4 1/4″ Suare Hole
• Junction Box Dimensions (with driver inside): 3 1/2″ x 3 1/4″ x 1 1/2″

Suitable for Insulated Ceilings & Damp Locations.

Sold Separately

• Mounting model # MP-SQ-24
• Jumper Cable 10 ft. # JC-5CCT-10

Stock Trim White

Other trims available by custom order

Specification Sheet

• Spec Sheet DS-LED-4-S12W-SQ

Photometric PDF files:

PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files:

IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K
