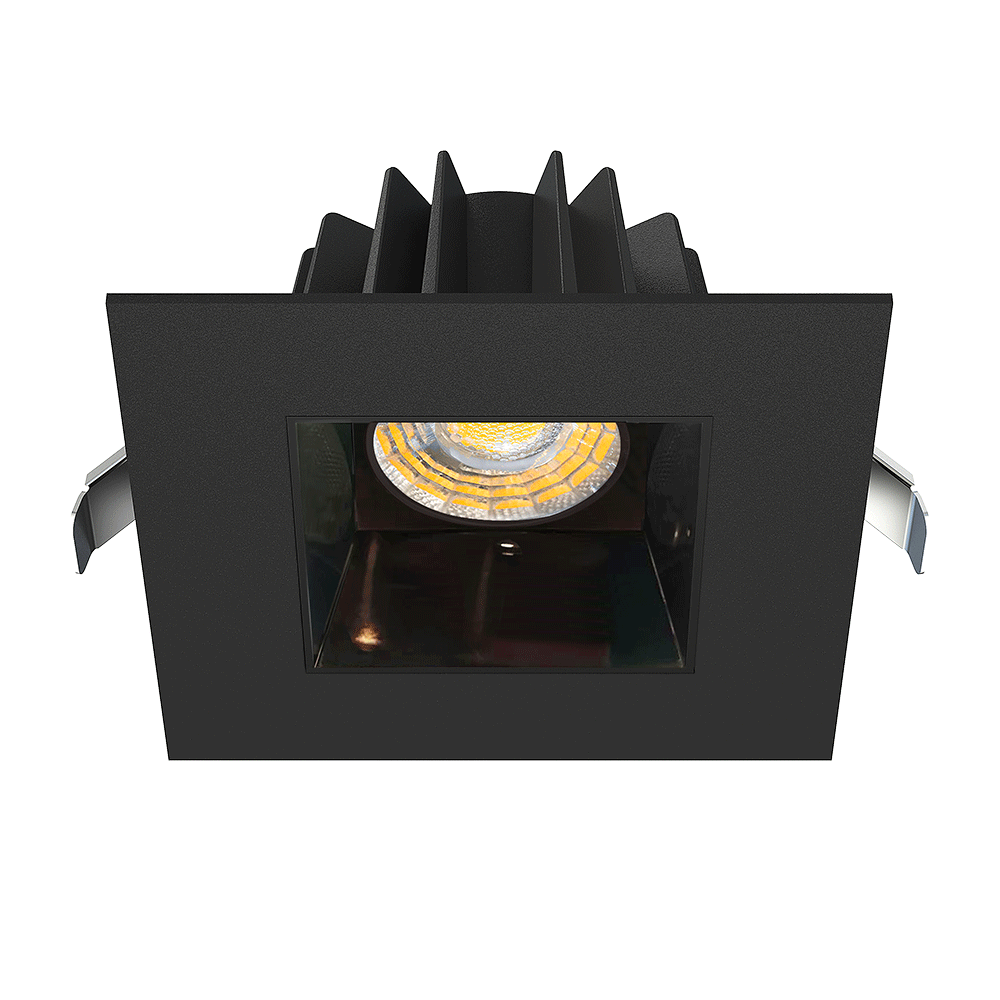

4″ Square Economy 15W 5CCT

CONSTRUCTION:
4″ Square Recessed fixture with integral Driver in Connection Box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 3″

• Driver Input Voltage: 120V AC 50/60 Hz
• Dimmability – TRIAC Dimmers 20%-100%
• Energy Used: 15W
• Halogen equivalent: 100W
• Beam Angle: 36°
• User Selectable Light colour options: 2700 | 3000 | 3500 | 4000 | 5000 K
• Light output with White Reflectors – Smooth or Baffle: 1160 | 1270 | 1350 | 1390 | 1350 lm
• Light output with Black Reflectors – Smooth or Baffle: 1130 | 1210 | 1280 | 1350 | 1280 lm
• Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Approved Locations: Insulated Ceilings & Damp Locations
• Rated: cETLus

DIMENSIONS:

• ID 3 1/2″, OD 4 3/4″; Thickness 3″
• Cut out: 4 1/4″
• Junction Box Dimensions (with driver inside): 3 1/2” x 3 1/2” x 1 1/4”

Accessories – Sold Separately

Mounting Plate

13″ Long – Model #MP4-2

26″ Long – Model #RIP4

Flanged Plate with Hanger Bars

Model #FRP4

Jumper Cables

10 ft – Model #JC-5CCT-10

Specification Sheets

• Spec Sheet Square JXL-COB04-S15W-5CCT

Photometric PDF files:

White Reflectors:
PDF White Reflector 2700K | PDF White Reflector 3000K | PDF White Reflector 3500K | PDF White Reflector 4000K | PDF White Reflector 5000K

Black Reflectors:
PDF Black Reflector 2700K | PDF Black Reflector 3000K | PDF Black Reflector 3500K | PDF Black Reflector 4000K | PDF Black Reflector 5000K

Photometric IES files:

White Reflectors:
IES White Reflector 2700K | IES White Reflector 3000K | IES White Reflector 3500K | IES White Reflector 4000K | IES White Reflector 5000K

Black Reflectors:
IES Black Reflector 2700K | IES Black Reflector 3000K | IES Black Reflector 3500K | IES Black Reflector 4000K | IES Black Reflector 5000K
