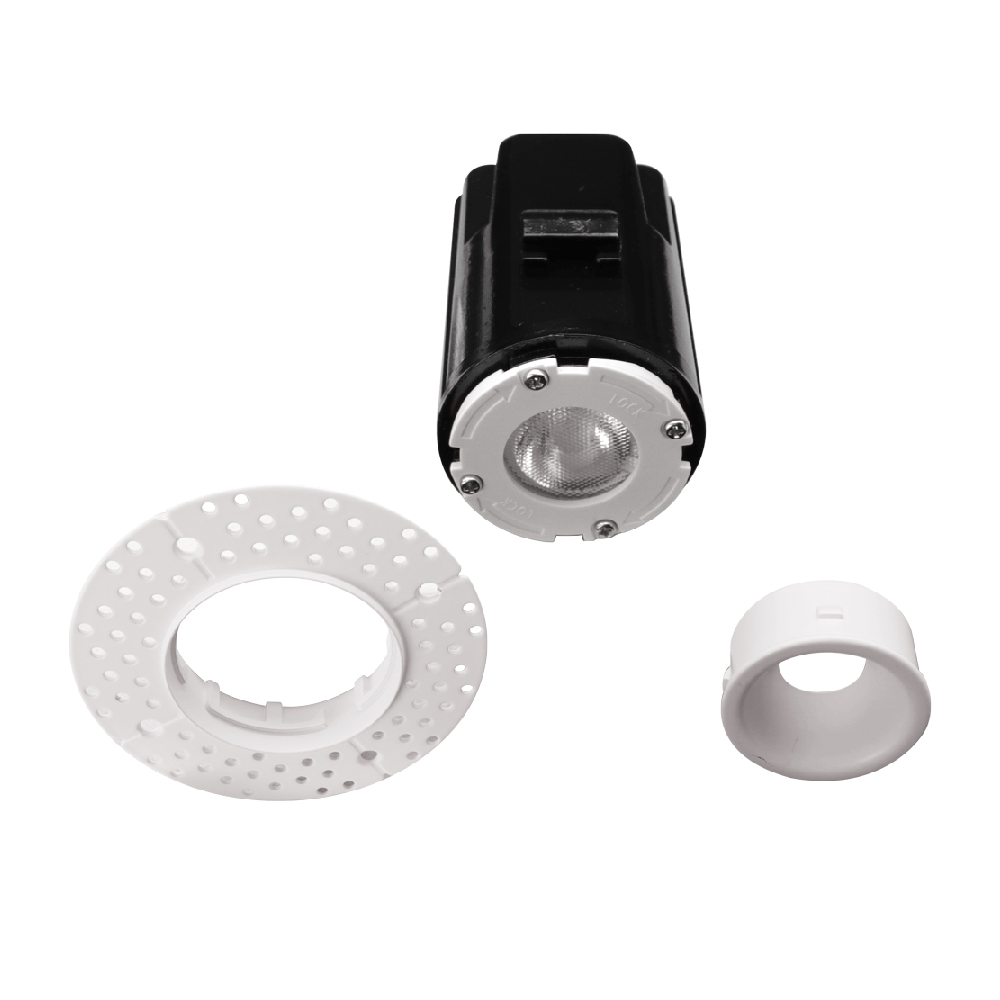

2″ Round Trimless Recessed 7W
Ultra compact and versatile with interchangeable trims.
Spec Sheet
Product Features
- 5CCT User Selectable Light Color
- CRI 90+ for True Color Rendering
- Round White & Black ring in stock, square by custom order/li>
- Beam options: 38° (standard), 24° available as adder
- 3 3/8″ Deep – Fits Where Ceiling Space Is Limited
- Type IC Rated – No Housing Required
- Driver Inside Connection Box – No Junction Box Needed
- 120V Triac Dimmable Driver Included
- Wet Location approved
- Warranty: 3 Year
- cETLus & Energy Star certified
Technical Specifications
CONSTRUCTION:
2″ Round Trimless Recessed LED fixture.
Driver inside connections box included – one driver for every fixture required.
Specifications:
Ceiling Clearance Required: 5″
- Input Voltage: 120V AC
- Triac Dimmable 100% – 10%
- Energy Used: 7W
- Halogen equivalent: 35W
- Beam options: 38° (standard), 24° available as adder
- Light colour options: 5CCT user selectable 2700-3000-3500-4000-5000K
- Light output: 430-460-480-480-450 lm
- Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Approved Locations: Insulated Ceilings & Wet Locations
- Certifications: cETLus, Energy Star
- Warranty: 3 Year
DIMENSIONS:
- ID 2″, OD 3 3/4″; Thickness 3 3/8″
- Cut out: 2 1/4″
- Junction Box Dimensions (with driver inside): 7 1/8” x 1 1/4” x 1 1/4”
Suitable for Insulated Ceiling & Wet Locations.
Accessories
Trim Color Options
Trim Colour Options
