10″ Round Commercial 5 CCT & 5 Watt Selectable
Spec & Sell Sheets
Product Features
- All in one 0-10 V dimmable 10″ LED downlight for retrofit & new construction
- Perfect for hospitality, healthcare, shopping mall & retail, office, exterior soffit
- Universal voltage 120-347 V
- 0-10 V Dimmable 5%-100%
- 5 CCT selectable 2700 – 3000 – 3500 – 4000 – 5000 K
- 5 Wattage Adjustable 22 – 26 – 30 – 35 – 40 W
- White Trim with White or Silver (Alzak) reflector in stock
- Type IC, Wet location & Air-tight
- Warranty: 5 Year
Video Overview
Technical Specifications
CONSTRUCTION:
All in one solution 10″ round recessed commercial grade LED fixture.
Perfect for hospitality, shopping mall & retail, office, exterior soffit, etc.
MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 5 3/4″
- Input: 120V-347V AC 50/60 Hz
- Power Levels (W): 22 | 26 | 30 | 35 | 40
- Light Output (lm): 2240 – 4360
- Color Temperature (K): 2700K | 3000K | 3500K | 4000K| 5000K

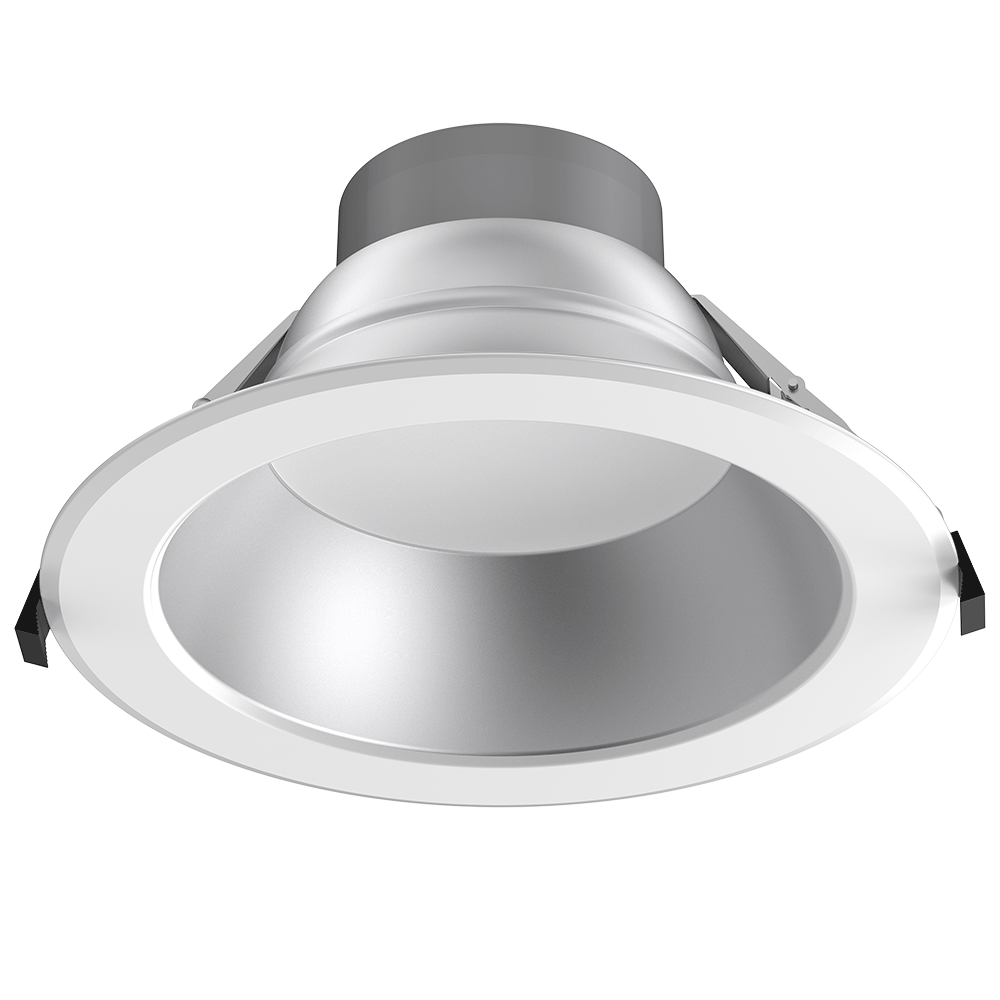

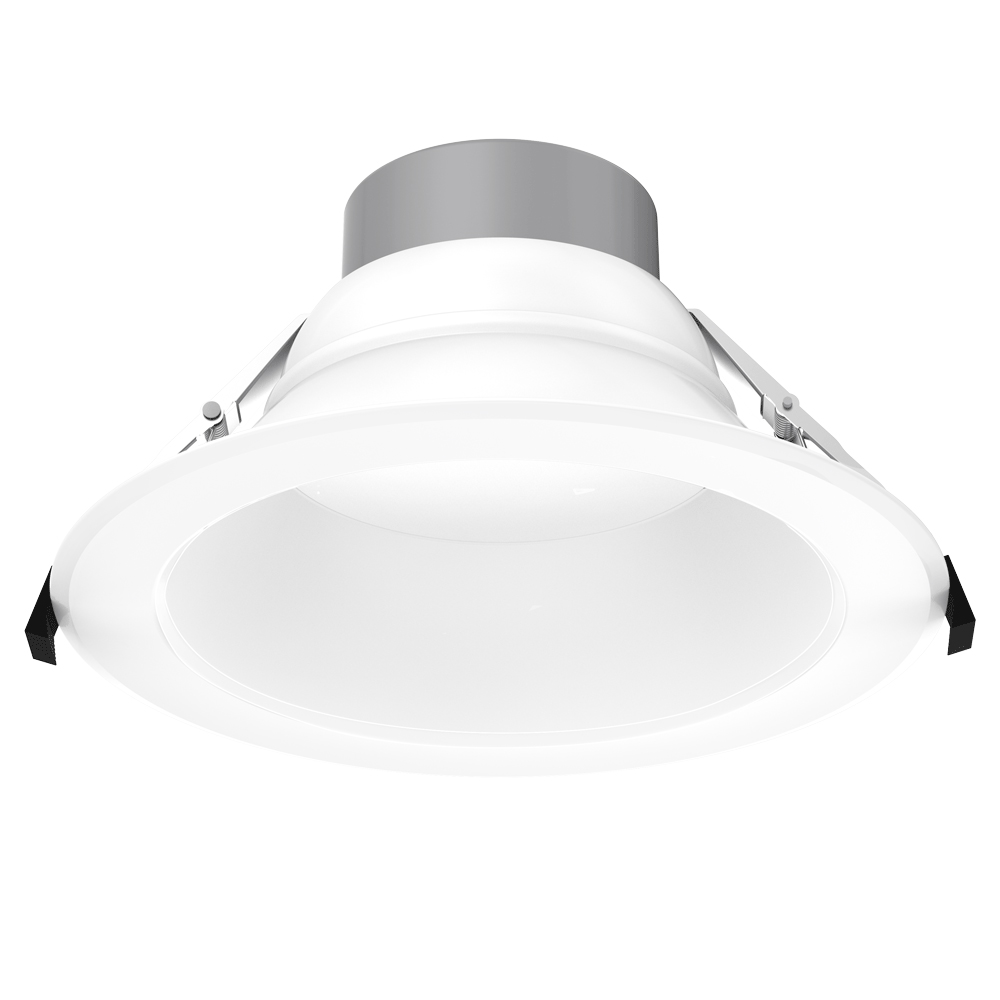

- White Trim with White or Silver (Alzak) reflector in stock
- Dimming: 0 – 10V
- Beam Angle: 90°
- CRI: 80
- Approved Location: Insulated Ceiling & Wet Locations
- Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
- Projected Life: 70% Light Output at 50,000 Hours
- Compliance: cETLus
- Warranty: 5 Year
DIMENSIONS:
- ID 8 7/8″; OD 11 1/2″; Thickness 5 3/4″
- Cut out: 9″ to 10″
Suitable for insulated ceilings, open plenum, and wet locations.
Accessories
Accessories Sold Separately
New Construction Mounting Plate for T-bar Ceiling model # LBL-MP-C4-10-TBAR
